Wave Type Tungsten Heater
1. What Is Wave Type Tungsten Heater?

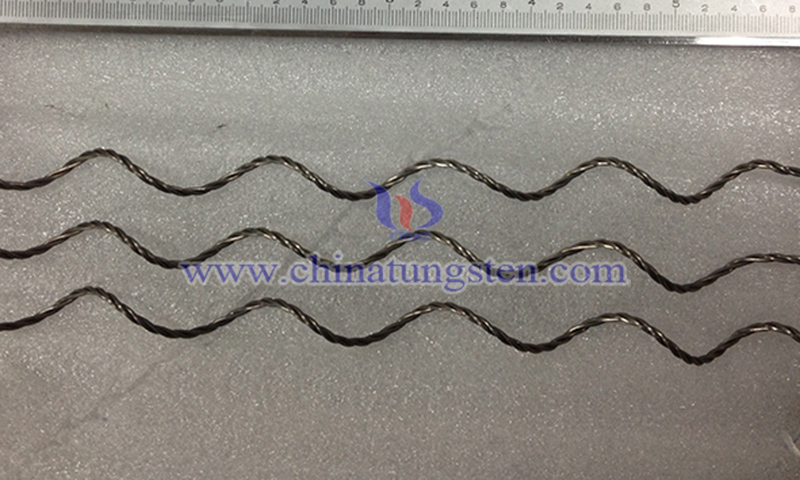

Wave type tungsten heater is a tungsten heating element formed by bending high-purity tungsten wire or multi-strand twisted tungsten wire into a continuous wave-like structure. It is also referred to as a wave-shaped tungsten heater.
2. Advantages of CTIA’s Wave Type Tungsten Heater
(1) Multi-point uniform evaporation: Multiple evenly spaced wave peaks generate multiple evaporation points along a unit length. Compared with single peak tungsten heaters, it provides a wider coverage area and more uniform evaporation.
(2) High material loading capacity: The wave peak and valley structure effectively accommodates evaporation materials such as aluminum wire and metal particles, increasing contact area and reducing material slippage.
(3) Stable material retention and evaporation: Continuous wave valleys help stabilize molten metal positioning, reducing evaporation inconsistency caused by material flow.
(4) Excellent thermal stability: The wave structure provides mechanical buffering, reducing thermal expansion stress and minimizing deformation or fracture during repeated heating cycles.
3. Applications of CTIA’s Wave Type Tungsten Heater
(1) Large-area precision optical filters: Used in the production of high-precision optical filters, ensuring uniform thickness and consistent film structure during Physical Vapor Deposition (PVD) processes.
(2) Flexible display manufacturing: Used for metal electrode deposition in Organic Light-Emitting Diode (OLED) devices, providing stable evaporation flux, reducing local overheating, and protecting organic layer integrity.
(3) High-precision electronic thin films: Used in thin-film resistors and sensor chips, ensuring highly uniform composition and microstructure in deposited metal films.
(4) Wide-angle reflector coating: Used for complex curved optical reflectors such as automotive headlamp housings, ensuring uniform coating distribution even at edges and recessed areas.
4. Specifications of CTIA’s Wave Type Tungsten Heater
(1) Material: High-purity or doped tungsten wire
(2) Wire diameter: 0.2–1.5 mm
(3) Structural parameters: Wave peak height, wave spacing, leg spacing, coil diameter, overall length, and bending angle customizable
(4) Structure type: Continuous wave or multi-wave structure
(5) Strand configuration: Single wire or multi-strand twisted wire
(6) Surface treatment: Chemical cleaning or electrolytic polishing
CTIA GROUP, with over 30 years of expertise in tungsten heater manufacturing, delivers advanced customization and precision manufacturing solutions. Based on application scenarios, operating temperature, and power requirements, CTIA optimizes key parameters including tungsten wire diameter, strand count, wave peak height, wave spacing, leg spacing, coil diameter, overall length, and bending angle. Integrated with surface treatments such as precision polishing, CTIA provides full-process customized solutions tailored to specific operating conditions.
