CTIA's Tungsten Heater in Optical Thin Film Deposition

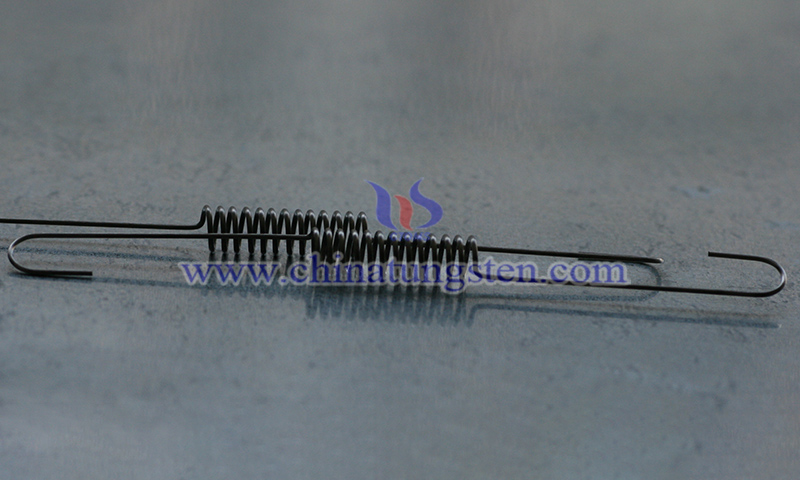

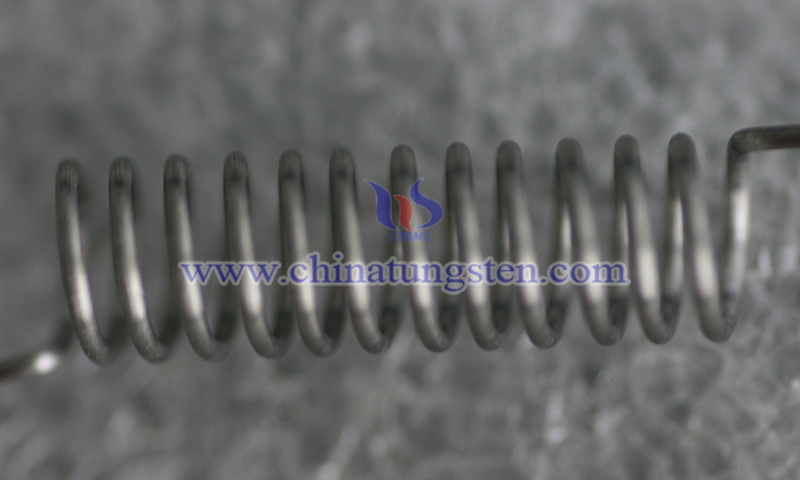

CTIA’s tungsten heater is a resistive heating element manufactured from tungsten wire with a purity exceeding 99.95% through precision stranding and coiling. The tungsten heating element provides a stable heat source in high-vacuum coating environments for thermal evaporation deposition systems, specifically for the production of anti-reflective coatings, reflective films, optical filters, and various functional optical thin films.
Advantages of CTIA's Tungsten Heaters in Optical Deposition
The fabrication of optical thin films requires precise control over layer uniformity, purity, and thickness. To meet these process requirements, CTIA’s tungsten heaters provide the following functional characteristics:
(1) Thermal stability: A melting point of 3410℃ allows the heater to maintain its structural integrity during high-temperature evaporation, supporting extended continuous operation.
(2) Environmental purity: The extremely low vapor pressure of tungsten in a vacuum minimizes material volatilization, which reduces the risk of impurity introduction and maintains the cleanliness of the deposition environment.
(3) Thermal uniformity: Stable resistive performance ensures consistent energy conversion, facilitating a balanced thermal field distribution through radiant heat transfer.
(4) Dimensional integrity: A low coefficient of thermal expansion limits structural deformation during repeated thermal cycling, contributing to consistent process repeatability and film uniformity.
Applications of CTIA's Tungsten Heater in Optical Thin Film Deposition
Tungsten heaters are widely utilized in thermal evaporation units within vacuum coating systems to form functional thin films on optical device surfaces:
(1) Anti-reflective coating preparation: to improve light transmission.
(2) Reflective film deposition: to achieve precise optical reflection control.
(3) Optical filter formation: for selective transmission of specific wavelengths.
(4) Functional coating processing: for optical lenses and precision optical components.
Specifications of CTIA's Tungsten Heater
Material: Pure tungsten wire with a purity of at least 99.95% or doped tungsten wire.
Wire Diameter: 0.2mm~1.2mm.
Strands: Single strand or multi-strand stranding configurations.
Structure: Straight wire, spiral, coil, basket, and customized structures.
Surface Condition: Electrolytic polishing or alkaline cleaning treatments.
Drawing on more than 30 years of expertise in tungsten heater manufacturing, CTIA GROUP provides systematic optimization of wire specifications, structural configurations, effective heating lengths, and lead designs based on specific chamber structures, evaporation source layouts, and thermal field requirements. Combined with advanced surface treatments, full-process solutions are realized from material selection to custom fabrication.
