Multi Arch Tungsten Heater
What's Multi Arch Tungsten Heater?

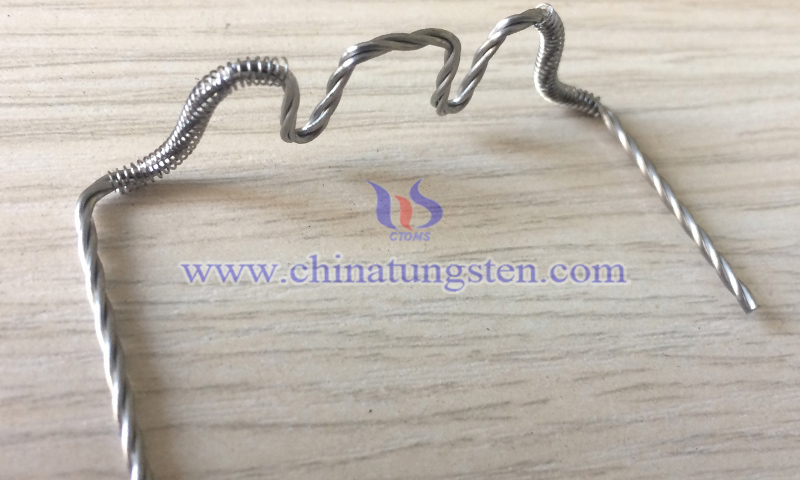

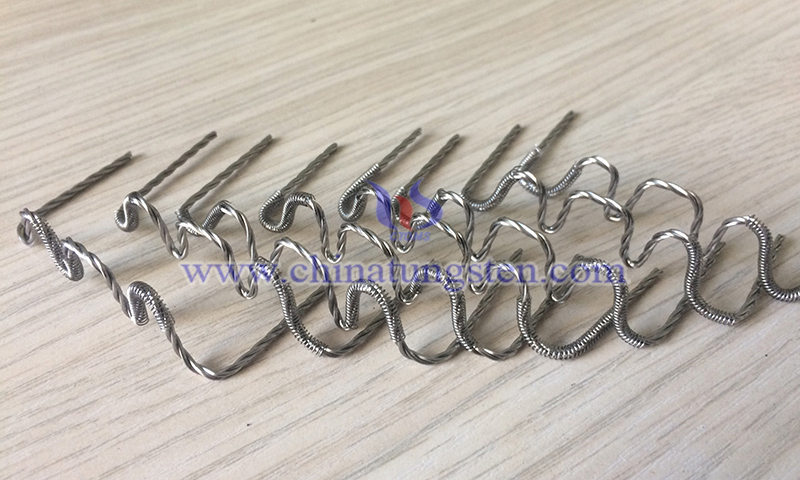

Multi arch tungsten heater, alternatively known as multi peak tungsten heater, is a high-temperature resistance heating element manufactured from high-purity tungsten wire or stranded tungsten wire through multi-stage precision bending processes. It is primarily utilized for heavy-duty evaporation heating processes within vacuum evaporation coating and high-temperature thermal field systems.
Characteristics of CTIA’s Multi Arch Tungsten Heater
(1) Highly efficient heating: Overlapping multi-peak designs expand effective heating surface area and thermal capacity, ensuring more uniform heating of deposition materials for large-area continuous coating and high-load operating conditions.
(2) High-temperature stability: With a melting point of approximately 3,422°C, tungsten provides exceptional creep resistance and structural integrity at temperatures exceeding 2,000°C.
(3) Low contamination: Low vapor pressure minimize the impact of high-temperature volatilization on vacuum environments and film purity.
(4) Reliable materials: Utilizing high-purity tungsten wire with a purity ≥ 99.95%, with optional potassium-doped tungsten wire to enhance high-temperature non-sag performance.
(5) Broad environmental compatibility: Capable of reliable long-term operation within vacuum environments or inert gases such as argon and nitrogen, covering a temperature range of 1,800°C to 2,600°C.
(6) Adjustable configurations: Power levels and evaporation profiles are precisely matched through the adjustment of peak counts, peak heights, and peak spacing.
Specifications of CTIA’s Multi Arch Tungsten Heater
(1) Purity: W≥ 99.95%
(2) Wire diameter: 0.5–1.2 mm, customizable
(3) Configuration types: Three-peak, five-peak, or multi-peak
(4) Peak height: 10–40 mm, customizable
(5) Peak spacing: 5–35 mm, customizable
(6) Total span: 60–200 mm, customizable
(7) Stranding method: Two-strand, three-strand, or multi-strand
(8) Surface treatment: Ultrasonic cleaning, chemical cleaning, or electropolishing
Applications of CTIA’s Multi Arch Tungsten Heater
Double arch structures routinely support demanding thermal processes across diversified industries, driving key production lines such as:
(1) Automotive lighting: Vacuum aluminizing for reflective coatings.
(2) Architectural glass: Low-emissivity and functional film depositions.
(3) Optical coating: Anti-reflective coatings and precision optical thin-film deposition.
(4) Consumer electronics: Housing metallization and decorative coatings.
(5) Semiconductor: Deposition of functional thin films and electrode materials.
With over 30 years of experience in tungsten heater manufacturing, CTIA GROUP provides customized designs based on equipment power, evaporation materials, and thermal field requirements, optimizing peak layout, height, spacing, and wire structure for stable operation in high-temperature vacuum environments.
