V-Type Tungsten Heater
1. What Is V-Type Tungsten Heater?
V-type tungsten heater is a precision tungsten heating element engineered for vacuum evaporation processes. It features a geometrically defined V-shaped structure designed to localize the evaporation zone. This configuration utilizes gravity and surface tension to stabilize molten materials within the groove base, preventing material migration during high-temperature operation.
2.Features of CTIA’s V-Type Tungsten Heater
(1) Extreme Thermal Stability: Utilize tungsten’s high melting point of 3420°C to ensure structural stability under high vacuum and severe thermal loads, preventing deformation and operational failure.
(2) Enhanced Creep Resistance: Fabricated using high-purity tungsten wire or doped tungsten wire grades HW41 and HW42 with improved recrystallized grain structure for enhanced creep resistance and extended service life.
(3) Precise Thermal Field Control: Maintain stable electrical resistance and low thermal expansion to enable uniform heat distribution and consistent thin-film deposition quality.
(4) Point-Source Evaporation Accuracy: Provide a defined material holding zone for evaporation from a fixed geometric center to ensure precise film thickness control.
(5) Optimized Energy Efficiency: Concentrate current density at structural vertices to reduce ignition power requirements and improve evaporation efficiency and material utilization.
(6) Mechanical Durability: Construct from single or multi-strand high-purity tungsten wire to maintain geometric stability under repeated thermal cycling across electrode configurations.
3.Applications of CTIA’s V-Type Tungsten Heater
(1) Industrial Surface Coating: Used for vacuum metallization of mirrors, solar collector tubes, plastic components, and decorative parts.
(2) Electronic Device Manufacturing: Serves as a heating element in cathodes of electron tubes and supports thermal processes in semiconductor components.
(3) Laboratory Sample Preparation: Used in Scanning Electron Microscope (SEM) sample gold coating preparation, ensuring consistent deposition rates for research applications.
(4) Metal Substrate Enhancement: Used to deposit functional thin films on metal substrates to improve adhesion and surface performance.
4.Specifications of CTIA’s V-Type Tungsten Heater
(1) Material: HW41, HW42
(2) Wire Diameter (mm): 0.3~1.5
(3) Strand Count: 1–6
(4) Surface Condition: Chemical cleaning or electrolytic polishing

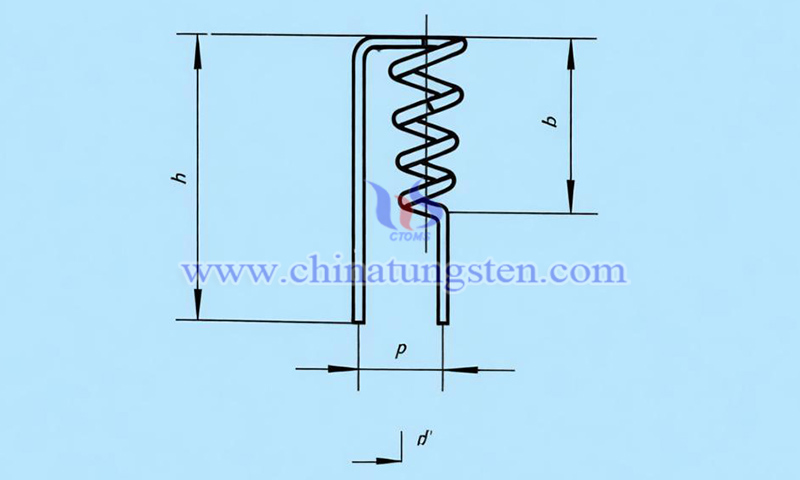

CTIA GROUP, with over 30 years of expertise in tungsten heater manufacturing, provides full-process customization and precision engineering solutions. Based on application scenarios, operating temperature requirements, and structural parameters including wire diameter, strand count, V-groove angle, groove width, leg spacing, overall length, and bending angle, CTIA integrates surface treatments such as electrolytic polishing and chemical cleaning to deliver tailored solutions for specific operating conditions.
For any inquiry, please contact?tungsten heater manufacturer: CTIA GROUP
Email: sales@chinatungsten.com
Tel: 0086 592 5129696 / 0086 592 5129595
Website: m.baixiaosheng123.com
