Single Peak Tungsten Heater
1. What Is Single Peak Tungsten Heater

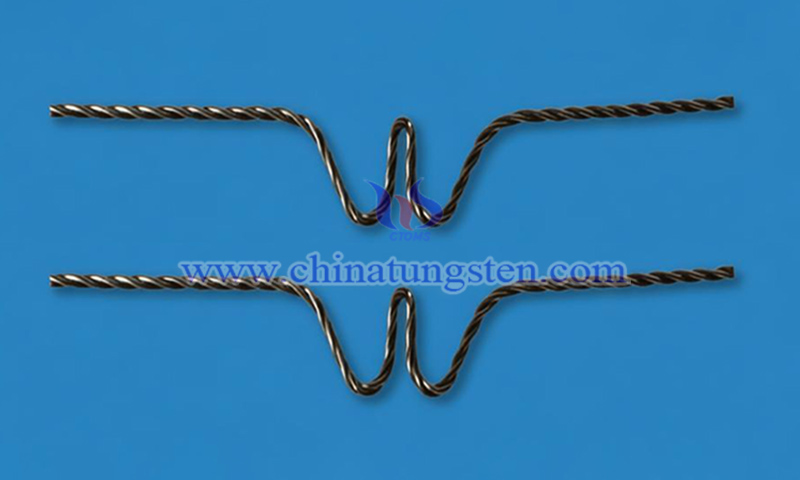

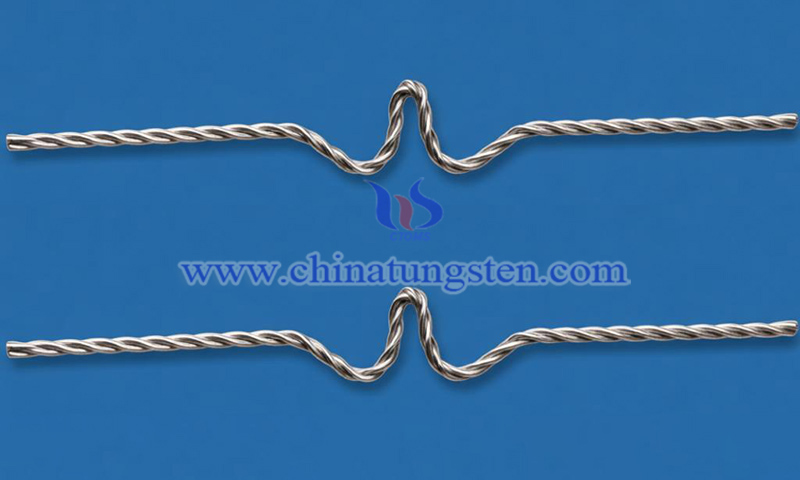

Single peak tungsten heater is a tungsten heating element fabricated from high-purity tungsten wire or doped tungsten wire through precision bending and forming processes. It features a centrally raised peaked structure with two terminal leads, designed for localized heating and material evaporation in vacuum deposition.
2. Features of CTIA’s Single Peak Tungsten Heater
(1) High-temperature stability: With a melting point of approximately 3420°C, the structure maintains integrity under high vacuum and high thermal load conditions without melting or structural degradation.
(2) Concentrated thermal field: The single-peak geometry concentrates heat in the central zone, improving localized evaporation efficiency and heating response.
(3) Structural stability: The arched configuration provides mechanical support, reducing deformation at elevated temperatures.
(4) Stable electrical performance: Consistent resistance enables precise control of heating power and evaporation rate.
(5) Low contamination: Low vapor pressure ensures clean operation in high-purity vacuum environments.
3. Applications of CTIA’s Single Peak Tungsten Heater
(1) Vacuum metallization and evaporation: Facilitates the thermal evaporation of metals such as aluminum, chromium, and gold under high-vacuum conditions to ensure stable and uniform thin-film deposition.
(2) Optical thin-film deposition: Utilized in the fabrication of anti-reflection coatings, reflective films, optical filters, and protective layers to achieve precise thickness control and surface uniformity.
(3) Plastic and decorative coating: Used for metallization of polymers such as Polypropylene (PP) and Polycarbonate (PC), including functional and decorative aluminum coatings.
(4) Electronic functional films: Supports the deposition of conductive layers, electrode films, and electromagnetic shielding coatings within electronic device manufacturing.
(5) Laboratory vacuum evaporation: Serves as a evaporation source in Physical Vapor Deposition (PVD) systems for material research and thin-film process development.
4. Specifications of CTIA’s Single Peak Tungsten Heater
(1) Material: High-purity tungsten or doped tungsten wire
(2) Wire diameter: 0.2–1.5 mm, customizable
(3) Structural parameters: peak height, span, overall length, and lead length are all customizable
(4) Structure type: single-peak, multi-peak or hybrid structures available
(5) Strand configuration: single wire or multi-strand twisted wire
(6) Surface treatment: chemical cleaning or electrolytic polishing
(7) Manufacturing: customized according to drawings, specifications, or application requirements
Based on over 30 years of experience in tungsten heater fabrication, CTIA GROUP provides technical solutions for design and manufacturing by calibrating parameters such as wire diameter, material grade, peak geometry, overall length, and strand configuration to match specific application scenarios, thermal zone requirements, and power specifications. Through the integration of surface treatments like electrolytic polishing and chemical cleaning, CTIA GROUP manages the entire transition from metallurgical selection and structural design to the delivery of precision-manufactured products.
