Grooved Tungsten Heater
1.What Is Grooved Tungsten Heater?

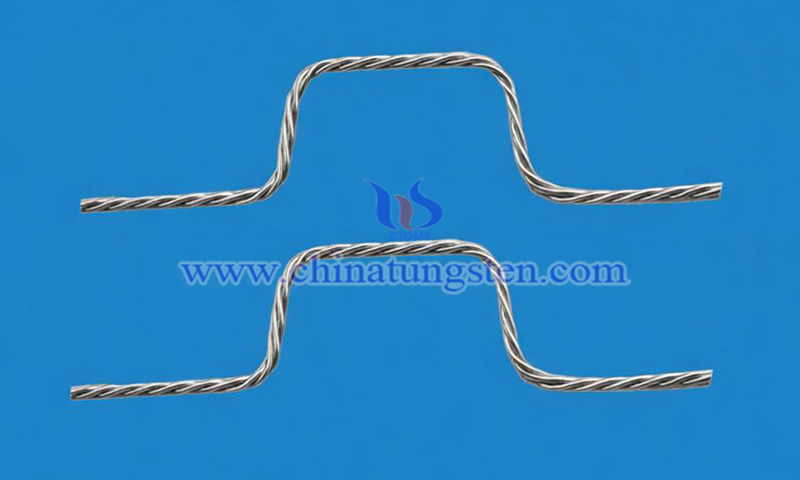

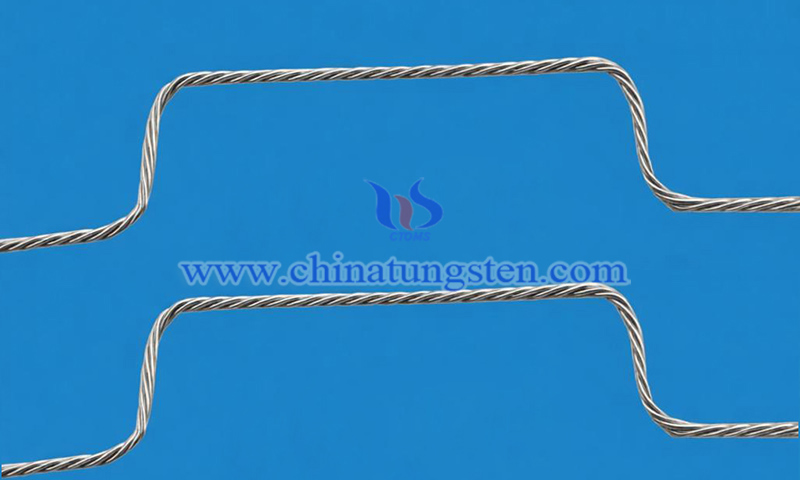

Grooved tungsten heater is a tungsten heating element formed from multi-strand high-purity tungsten wire through precision twisting and forming into a grooved structure. It enables stable evaporation of metals or functional materials through resistive heating and is suitable for granular, wire-form, or small-piece evaporation materials.
2.Features of CTIA’s Grooved Tungsten Heater
(1) Capillary retention effect: Enable capillary action within inter-strand gaps, reducing molten material flow and splash while improving evaporation stability.
(2) Uniform current distribution and thermal uniformity: Distribute current density across multiple conductive paths to minimize localized overheating and ensure stable heating performance.
(3) Mechanical stability and thermal stress resistance: Twisted-wire construction enhances structural stability and reduces deformation during repeated thermal cycling.
(4) Increased heating contact area: Multi-strand geometry increases effective heat exchange area, improving evaporation efficiency.
(5) High surface cleanliness: Chemical cleaning or electrolytic polishing reduces impurities and outgassing for high-vacuum applications.
3.Applications of CTIA’s Grooved Tungsten Heater
(1) Vacuum metallization coating: Used for aluminum and chromium evaporation in decorative plastic parts, mirrors, and mobile phone housings.
(2) Electronic component manufacturing: Used for conductive film deposition in capacitors and transistors.
(3) Semiconductor and display technology: Used as controlled evaporation source for precision thin-film deposition under vacuum environments.
(4) Laboratory micro-evaporation: Used for stable evaporation of granular or wire-form metals in research sample preparation.
4.Specifications of CTIA’s Grooved Tungsten Heater
(1) Material: High-purity or doped tungsten wire (≥99.95%)
(2) Structure: Grooved type
(3) Wire diameter: 0.1–1.5 mm, customizable
(4) Strand count: 1–10 strands, adjustable per load requirements
(5) Groove dimensions: Width, depth, and length customizable
(6) Effective heating zone: Designed per evaporation area and power distribution
(7) Surface treatment: Chemical cleaning or electrolytic polishing
With over 30 years of expertise in tungsten heater manufacturing, CTIA GROUP provides mature customized design and precision manufacturing capabilities. Based on application scenarios, operating temperature, and power requirements, CTIA performs system-level design and optimization of key parameters including tungsten wire diameter, strand count, groove dimensions, groove width and depth, and structural configuration. Integrated with surface treatments such as chemical cleaning and electrolytic polishing, CTIA delivers full-process customized solutions from material selection and structural design to precision manufacturing.
For any inquiry, please contact?tungsten heater manufacturer: CTIA GROUP
Email: sales@chinatungsten.com
Tel: 0086 592 5129696 / 0086 592 5129595
Website: m.baixiaosheng123.com
