CTIA's Tungsten Heater in Plastic Coating
CTIA's tungsten heater in plastic coating refers to a resistive heating element used in vacuum evaporation coating equipment to heat and evaporate metals such as aluminum, tin, or chrome. By providing a stable, high-temperature thermal source, it enables uniform vaporization of metals in a high-vacuum environment. These metal vapors deposit onto plastic substrates including Acrylonitrile Butadiene Styrene (ABS), Polycarbonate (PC), and Polypropylene (PP) to form decorative or functional metallic thin-film layers serving automotive components, cosmetic packaging, and consumer electronics.
Working Principle of CTIA’s Tungsten Heater
Tungsten heater generates Joule heat upon electrification, heating the evaporation material to a molten and vaporized state. Metal atoms diffuse in the vacuum environment and deposit onto the plastic substrate surface, forming a dense and uniform metallic film after cooling to achieve plastic surface metallization.
Applications of CTIA’s Tungsten Heater

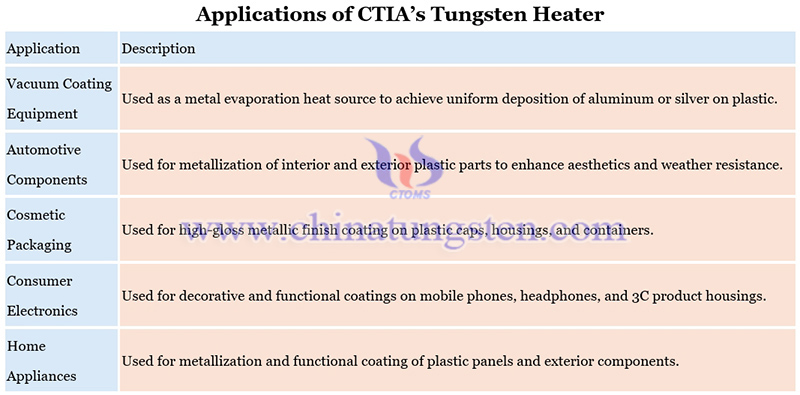

The table below outlines the applications of CTIA’s tungsten heater in the plastic coating field:
Specifications of CTIA’s Tungsten Heater
Material: High purity tungsten wire or doped tungsten wire, purity ≥99.95%
Wire diameter (mm): 0.5~1.2
Structure: Multi strand precision twisted structure

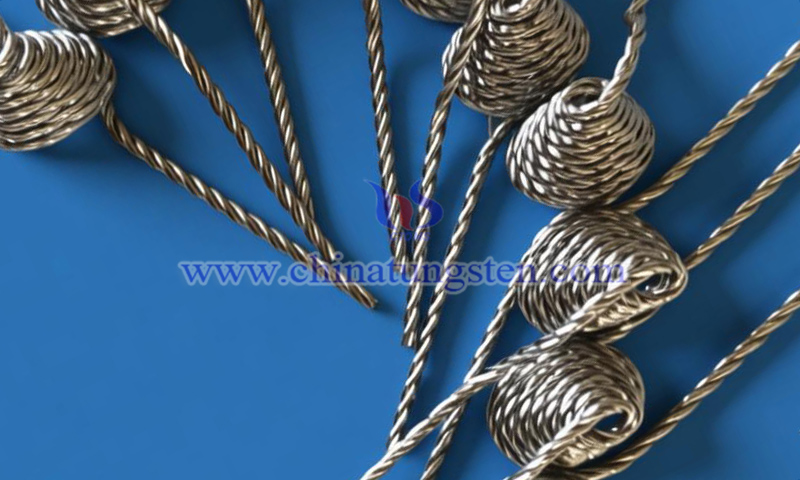

Geometry: Hump, U-frame, funnel, and customized structures
Surface treatment: Electrolytic polishing or alkaline cleaning
CTIA GROUP has been deeply engaged in the tungsten heater manufacturing sector for over 30 years. With profound expertise, CTIA systematically optimizes tungsten wire diameter, structural design, and heating zone in accordance with clients’ vacuum coating equipment structure, plastic substrate properties, and evaporation material requirements, while offering end-to-end customized services ranging from material selection to precision manufacturing.
