CTIA's Tungsten Heater in Display Device Coating

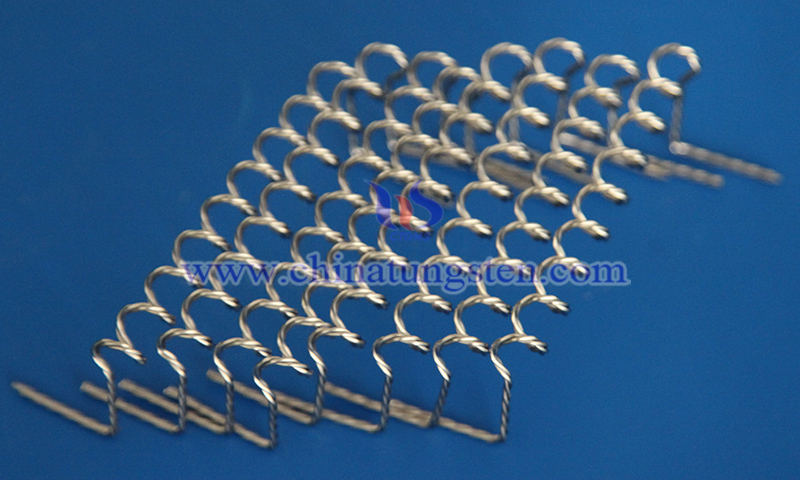

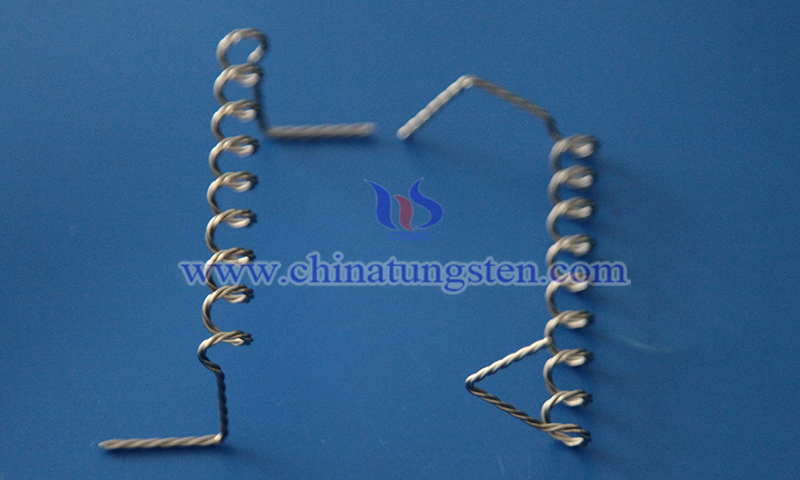

CTIA's tungsten heater is a tungsten heating element manufactured from high-purity tungsten wire or stranded tungsten wire through precision stranding, coiling, and surface treatment processes. It is designed to heat and evaporate materials during the vacuum evaporation coating of display devices such as Organic Light Emitting Diode (OLED) and Liquid Crystal Display (LCD), facilitating the deposition of Indium Tin Oxide (ITO) conductive films, organic light-emitting layers, and metal electrode materials. The tungsten heating element powers critical film-forming processes for smartphone screens, flat-panel displays, automotive monitors, and wearable devices.
Thin film deposition requires high stability and cleanliness of the evaporation source during display device manufacturing. CTIA's tungsten heater acts as a critical resistive evaporation source, heating materials such as aluminum, silver, and organic compounds to an evaporative state via electrical resistance. These materials then deposit onto the substrate surface in a vacuum environment to form functional thin films. This process is fundamental to Physical Vapor Deposition (PVD) and thermal evaporation techniques.
Display devices demand high film uniformity and purity, as the stability of heating elements directly impacts panel yield rates. CTIA's tungsten heater meets these requirements through optimized structures and materials:
(1) Uniform thermal field distribution: Reasonable pitch design and resistance control ensure stable thermal radiation within the heating zone, improving film consistency across large-area substrates.
(2) Cleanliness control: Low vapor pressure in high-temperature vacuum environments, combined with specialized surface treatments, minimizes impurity introduction during organic layer and functional film deposition.
(3) Structural stability: Doping enhances high-temperature stability, allowing the heater to maintain its shape and structural integrity through multiple thermal cycles.
(4) Temperature control responsiveness: Stable electrical and thermal conductivity combined with controllable resistance changes allow for precise temperature regulation and evaporation rate control within evaporation systems.
Specifications of CTIA's tungsten heater in display device coating:
Material: High-purity tungsten wire or stranded wire (99.95% or higher).
Wire diameter: 0.2~0.8mm for single wires.
Configuration: Single or multi-strand designs.
Structure: Straight, spiral, coil, basket, or custom geometries.
Dimensions: Customizable heating zones, sizes, and lead structures.
Material optimization: Doped tungsten wire available.
Surface treatment: Ultrasonic, alkaline cleaning, or electrolytic polishing.
CTIA GROUP leverages over 30 years of manufacturing excellence to deliver optimized tungsten heater solutions, specializing in the precision engineering of wire diameters, doping levels, and structural configurations. These technical specifications are tailored to the unique requirements of vacuum coating architectures, production environments, and evaporation material characteristics. CTIA provide comprehensive, end-to-end customized services that integrate material selection and structural design with advanced fabrication processes.
