Multi Peak Tungsten Heater

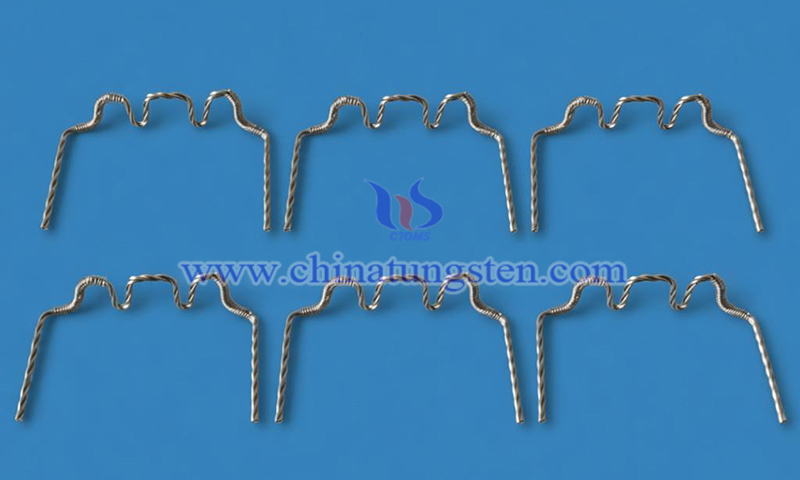

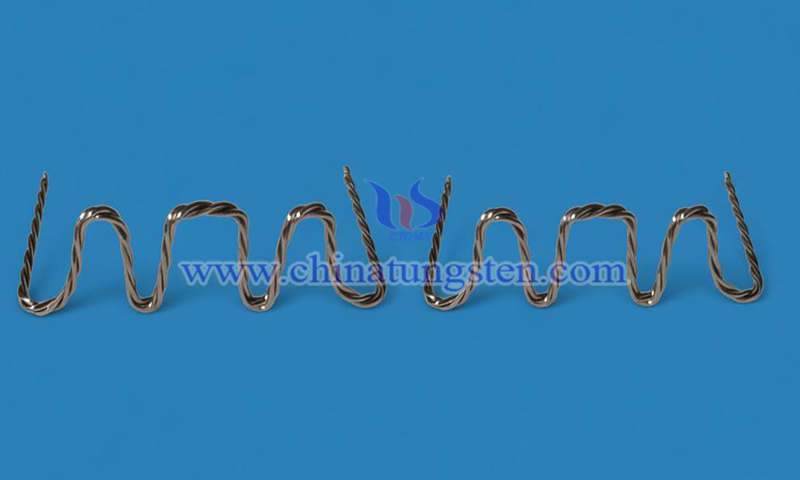

Multi peak tungsten heater is a tungsten heating element formed by precision bending high-purity tungsten wire into multiple peak structures, such as triple peak, quadruple peak, or continuous wave-like configurations. It consists of terminal leads and multiple continuous or parallel heating peaks. Compared with single peak and double peak designs, it provides a larger effective heating area and higher material loading capacity, making it suitable for high-load vacuum evaporation coating applications.

(1) Linear thermal field distribution: By increasing the number of peaks, point-source evaporation is transformed into a distributed multi-point linear heat source, improving large-area coating uniformity.
(2) High material loading capacity: The multi peak structure provides multiple material holding positions, allowing higher loading of evaporation materials such as aluminum wire and gold wire, extending operating time per cycle.
(3) High-temperature resistance: Tungsten has a melting point of approximately 3420°C and maintains structural stability under high-vacuum and high thermal load conditions without deformation or failure.
(4) Long service life with anti-sag performance: Doped tungsten wire improves high-temperature creep resistance, ensuring stable peak structure under continuous operation.
(5) High surface purity: Electrolytic polishing or chemical cleaning reduces surface impurities and outgassing, improving vacuum coating cleanliness.

3. Applications of CTIA’s Multi Peak Tungsten Heater
(1) Large-area flat panel displays: Used for large-area deposition of reflective layers and electrode films in display panels, ensuring uniform coating and consistent film quality.
(2) Automotive components industry: Applied in continuous vacuum metallization lines for headlights, reflectors, wheels, and interior/exterior decorative parts.
(3) Flexible packaging coating: Used in roll-to-roll vacuum coating systems to provide stable metal evaporation for plastic films.
(4) Large optical components: Used for metal coating of large-aperture lenses, astronomical telescopes, and aerospace optical systems.

(1) Material: High-purity or doped tungsten wire
(2) Wire diameter: 0.2–1.5 mm
(3) Structural parameters: Number of peaks, peak height, span, overall length, and lead length customizable
(4) Structure type: Multi peak parallel or continuous multi peak structure
(5) Strand configuration: Single wire or multi-strand twisted wire
(6) Surface treatment: Chemical cleaning or electrolytic polishing

CTIA GROUP, with over 30 years of expertise in tungsten heater manufacturing, delivers system-level engineering design and precision manufacturing solutions. Based on application scenarios, vacuum conditions, material properties, and equipment constraints, CTIA optimizes key parameters including tungsten wire diameter, doping type and content, multi peak structure configuration, overall length, and support positions. Integrated with surface treatments such as chemical cleaning and electrolytic polishing, CTIA provides fully customized end-to-end solutions from material selection to structural manufacturing.

For any inquiry, please contact?tungsten heater manufacturer: CTIA GROUP

Email: sales@chinatungsten.com

Tel: 0086 592 5129696 / 0086 592 5129595

Website: m.baixiaosheng123.com

WeChat:

More info>>
