Hairpin Type Tungsten Heater
1. What Is Hairpin Type Tungsten Heater?

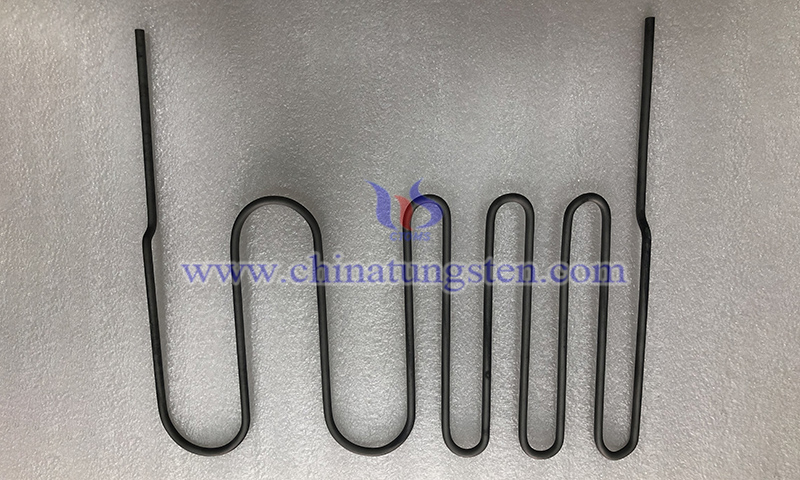

Hairpin type tungsten heater is a compact tungsten heating element fabricated by bending high-purity tungsten wire with purity of 99.95% or higher or doped tungsten wire into a U-shaped configuration. It is also referred to as a U-type or U-shaped tungsten heater. The tungsten heaters are typically manufactured from single-strand tungsten wire with a diameter of 0.2 to 2.0 mm or 2 to 4 strand twisted tungsten wire, and can be configured into multi-U arrays to accommodate specific vacuum heating volumes and equipment requirements.
2. Advantages of CTIA’s Hairpin Type Tungsten Heater
(1) Space Efficiency: The compact U-shaped design, available in single or multi-U array configurations, is suitable for localized or constrained heating environments.
(2) Thermal Performance: Provides rapid thermal response and high heat concentration, facilitating localized high power density heating and efficient energy transfer.
(3) Vacuum Stability: Maintains operational stability in high-vacuum environments, suitable for standard evaporation and thermal processes.
(4) Operational Reliability: Stability and service life are optimized by aligning temperature, current density, and surface conditions with specific operating parameters.
3. Applications of CTIA’s Hairpin Type Tungsten Heater
(1) Small-scale vacuum evaporation sources and precision thermal devices.
(2) Localized heating or evaporation components within vacuum coating systems.
(3) Evaporation heating for aluminum, metallic foils, and small-volume crucibles.
(4) Cathode Ray Tube (CRT) aluminum deposition, automotive reflectors, and optical thin-film coating.
(5) Semiconductor fabrication and decorative coating processes.
(6) Thermionic electron sources for electron microscopy.

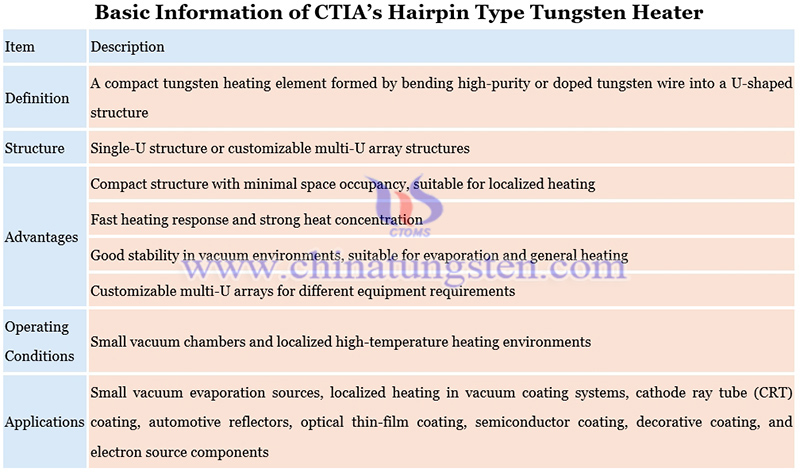

4. Basic Information of Hairpin Type Tungsten Heater
The basic information of CTIA’s hairpin type tungsten heaters is as follows:
Based on over 30 years of experience in tungsten heater fabrication, CTIA GROUP provides technical solutions for design and manufacturing by calibrating parameters such as wire diameter, strand count, U-bend radius, leg spacing, overall length, and bending angle to match specific application scenarios, thermal zone requirements, and power specifications. Through the integration of surface treatments like electrolytic polishing and chemical cleaning, CTIA GROUP manages the entire transition from metallurgical selection and structural design to the delivery of precision-manufactured products.
