What Are Applications of Tungsten Boat?

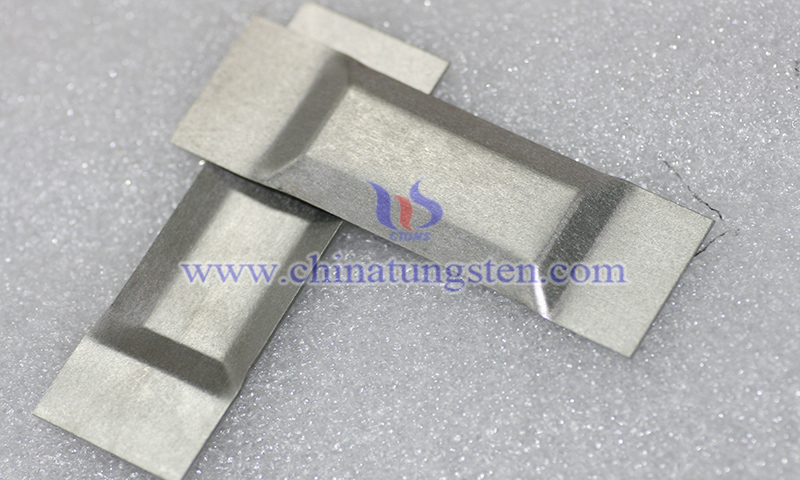

Tungsten boat is a crucial evaporation carrier in vacuum thermal evaporation coating processes, with key applications in Physical Vapor Deposition (PVD). Tungsten boat is typically fabricated from high-purity tungsten sheets with a purity of ≥99.95% and a density of no less than 19.1 g/cm3. Upon electrification, it utilizes the excellent electrical resistance heating performance of tungsten to rapidly elevate the temperature, evaporating the metal materials loaded inside the slot and depositing them onto substrate surfaces in a high-vacuum environment to form functional thin films.
Tungsten features a melting point up to 3,422°C, coupled with extremely low vapor pressure and outstanding electrical and thermal conductivity, enabling tungsten boat to maintain a stable operating state in high-temperature environments ranging from 1,600°C to 2,200°C. Consequently, it is widely applied in fields such as semiconductor chip metallization thin-film deposition, LED and OLED display device evaporation coating, solar cell electrode layer preparation, optical anti-reflection film and reflective film deposition, vacuum metallurgy and high-purity material purification, as well as scientific research vacuum evaporation experiments. The stable thermal field distribution and low-contamination characteristics of tungsten boat contribute to enhancing film uniformity, deposition efficiency, and process consistency.
1. CTIA's Tungsten Boat in Semiconductor and Microelectronics
Tungsten boat is used for metallization layer deposition in semiconductor chip manufacturing, such as aluminum, titanium, and gold thin films. This field requires extremely high film purity and uniformity. Low vapor pressure of tungsten boat reduces self-contamination, ensuring high-purity films. Uniform thermal field improves deposition rate and process repeatability, making tungsten boat a key heating component in wafer metallization processes.
2. CTIA's Tungsten Boat in LED and Display Devices
In LED (Light Emitting Diode) chips, OLED (Organic Light Emitting Diode) panels, and flat-panel displays, tungsten boat is used for electrode and functional film evaporation. Stable resistive heating enables high uniformity across large substrates. High temperature resistance and anti-deformation performance allow long-term stable operation, improving luminous efficiency and display quality.
3. CTIA's Tungsten Boat in Solar Photovoltaic
Tungsten boat is widely applied in the evaporation processes of electrode layers and transparent conductive thin films for solar cells, such as the deposition of materials including aluminum back surface fields and silver electrodes. This field requires high-efficiency and long-lifetime thin films. Due to its excellent chemical inertness and high-temperature stability, tungsten boat can reduce the introduction of impurities during the evaporation process, thereby improving the photoelectric conversion efficiency and operational reliability of solar cells.
4. CTIA's Tungsten Boat in Optical and Precision Coating
Tungsten boat is used in optical lenses, eyeglasses, architectural glass, and reflective mirror coatings for anti-reflective, high-reflective, and protective films. Smooth surface and uniform heating ensure film density and optical consistency. High melting point provides stable evaporation for precision optical coating processes.
5. CTIA's Tungsten Boat in Vacuum Metallurgy and Material Purification
Tungsten boat is suitable for refractory metal evaporation, rare-earth purification, and special alloy vacuum melting. High density and creep resistance enable stable performance in ultra-high temperature and corrosive environments, making it an ideal heating container for high-purity material production.
6. CTIA's Tungsten Boat in Research and Special Equipment
In laboratory research, advanced material development, and non-standard vacuum systems, tungsten boat can be customized according to thermal field distribution and process requirements. Flexible structure design and reliable high-temperature performance support new material exploration and specialized evaporation experiments.

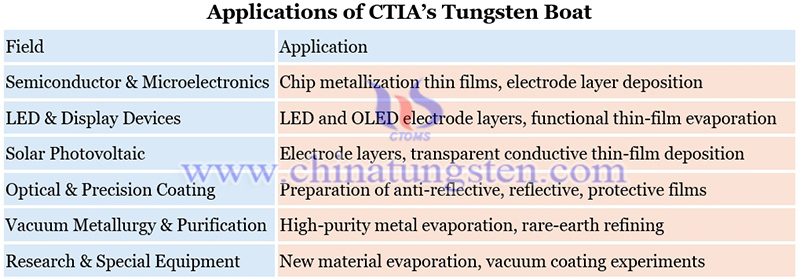

Applications of CTIA’s Tungsten Boat
Applications of CTIA’s tungsten boat are shown in picture as follows:
CTIA GROUP has over 30 years of experience in tungsten boat manufacturing, providing structural matching and parameter optimization based on different vacuum systems and evaporation processes. Strict control of high-purity tungsten quality, forming precision, and heating stability ensures stable thermal field and continuous evaporation capability under high-temperature and high-vacuum conditions, improving film uniformity and process stability.
