Riveted Tungsten Boat
What's Riveted Tungsten Boat?

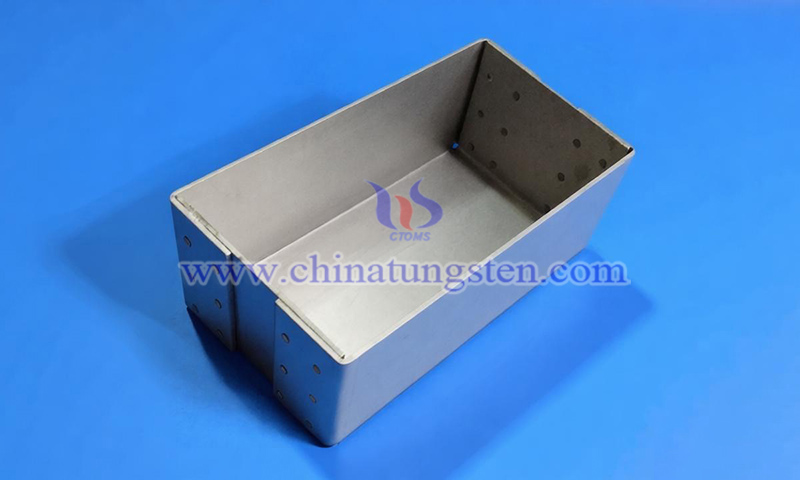

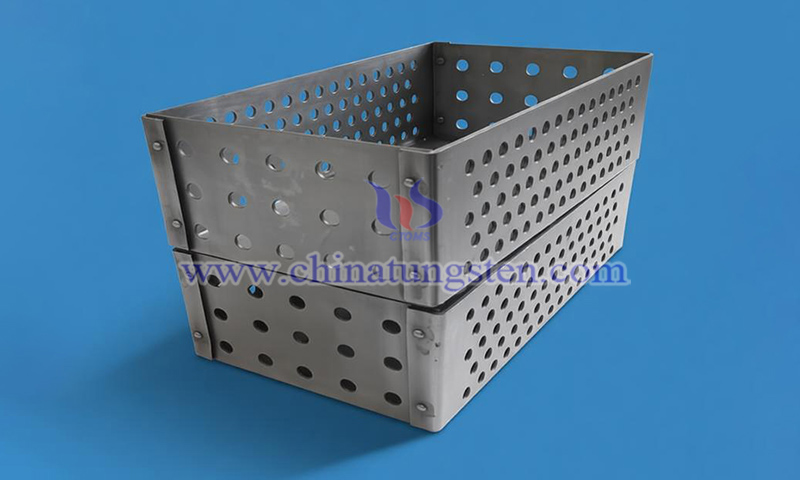

Riveted tungsten boat is boat-shaped evaporation tungsten crucible assembled from high-purity tungsten sheets using precision mechanical riveting, mainly applied in vacuum evaporation coating and Physical Vapor Deposition (PVD) processes. It consists of multiple tungsten plates connected through high-precision riveted structures, forming a central material-loading trough and extended electrode ends, ensuring stable current and uniform heating. Riveted structure avoids microstructural changes caused by high-temperature welding, making it ideal for high-stability, precision coating processes.
Advantages of CTIA’s Riveted Tungsten Boat
(1) No Weld Heat-Affected Zone: Prevents grain growth and property fluctuations caused by welding.
(2) Stable and Reliable Structure: Riveted connections provide long-term durability under repeated thermal cycles.
(3) Consistent Microstructure: Reduces local stress concentration and enhances structural uniformity.
(4) High Maintainability: Damaged sections can be disassembled for repair or component replacement.
Applications of CTIA’s Riveted Tungsten Boat
(1) Semiconductor Coating: Deposition of high-purity metal thin films and electrode layers, such as Al and Au.
(2) Optical Coating: Anti-reflective, reflective, and high-precision optical film deposition.
(3) LED and Display Technology: Preparation of electrode layers and functional conductive films.
(4) Solar Cells: Metal electrode and conductive film deposition.
(5) Research and Experiments: Material evaporation, vacuum coating, and new material preparation studies.
Specifications of CTIA’s Riveted Tungsten Boat
Purity: ≥99.95%
Density: ≥19.1 g/cm3
Length: 100–800 mm
Width: 10–150 mm
Thickness: 0.3–8 mm
Note: CTIA GROUP supports customized riveted tungsten boat solutions.
CTIA GROUP has over 30 years of experience in tungsten boat manufacturing, with mature expertise in riveted structure design and precision processing. By optimizing riveted structures according to equipment thermal field and evaporation process, and strictly controlling tungsten material purity and machining precision, riveted tungsten boat maintains stable structure and uniform evaporation performance under high-temperature and high-vacuum conditions, ensuring improved film quality and process consistency.
