Tungsten Crucible in Rare Earth Smelting
Tungsten crucible in rare earth smelting is a high-temperature vessel used in melting, reduction, purification, and reaction processing of rare earth metals and related compounds. It provides stable containment for rare earth melts under high-temperature vacuum or inert atmosphere while maintaining stable thermal distribution for reaction systems.

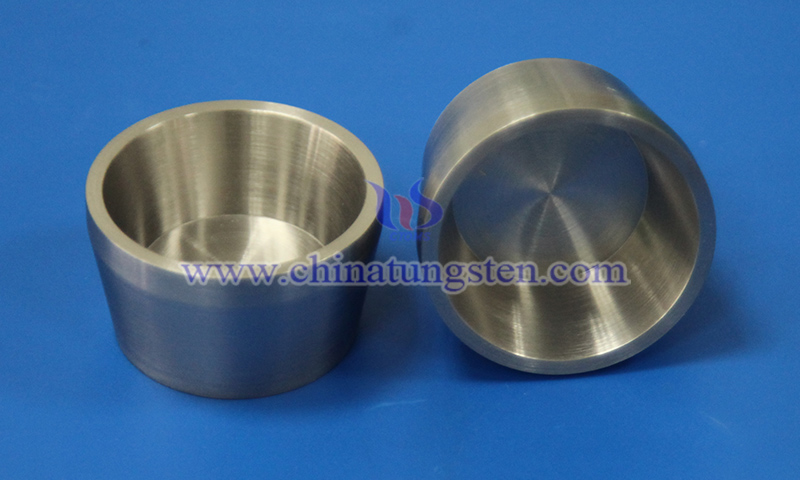

CTIA’s tungsten crucible is fabricated from high-purity tungsten with a purity of W≥99.95% through powder metallurgy sintering, densification forming, and precision machining processes, meeting the requirements of rare earth smelting for high-temperature stability and low contamination environments.
Why Is CTIA’s Tungsten Crucible Used in Rare Earth Smelting?
Rare earth smelting typically involves high-temperature and chemically active environments, requiring crucibles with reliable thermal stability and chemical resistance. CTIA’s tungsten crucible offers the following features for stable rare earth processing:
(1) Excellent high-temperature stability: Suitable for high-temperature rare earth melting and reduction processes;
(2) Reliable structural stability: Maintains good dimensional accuracy and structural integrity during long-term high-temperature operation;
(3) Good chemical resistance: Compatible with most rare earth molten salt and oxide systems;
(4) Stable thermal conductivity: Helps improve melt temperature uniformity and reaction consistency;
(5) Good thermal shock resistance: Suitable for rapid heating and cooling conditions;
(6) Low contamination: High-purity tungsten substrate helps reduce impurity introduction and improve rare earth material purity.
Applications of CTIA’s Tungsten Crucible in Rare Earth Smelting
CTIA’s tungsten crucible is mainly applied in the following processes: (1) Oxide reduction (REO→RE); (2) Vacuum melting and purification; (3) Molten salt electrolysis and high-temperature processing; (4) High-purity rare earth material preparation; (5) Rare earth alloy experiments and research; suitable for lanthanum (La), cerium (Ce), neodymium (Nd), dysprosium (Dy), and other rare earth systems.
Specifications of CTIA’s Tungsten Crucible
(1) Material: W≥99.95%
(2) Density: 17.8–18.5 g/cm3
(3) Outer Diameter: 20–500 mm, customizable
(4) Height: 30–600 mm, customizable
(5) Wall Thickness: 2–30 mm, customizable
CTIA GROUP has specialized in tungsten crucible manufacturing for over 30 years, providing customized optimization of crucible structure, wall thickness distribution, and thermal stability for rare earth smelting, along with integrated solutions from material purification to precision forming.
