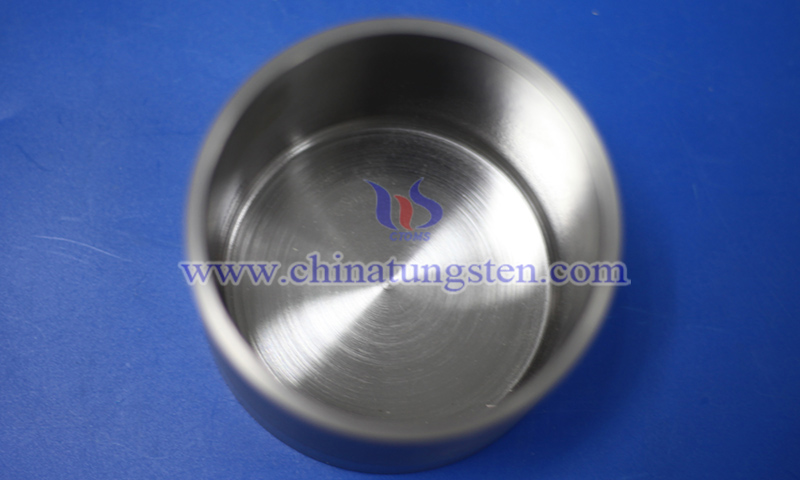

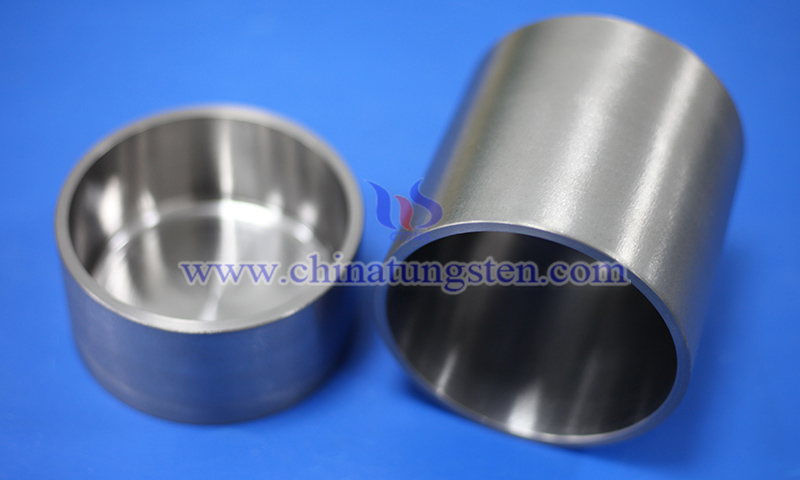

Large Size Tungsten Crucible
Large size tungsten crucible is large-specification, high-temperature resistant container manufactured from high-purity tungsten materials through processes such as powder metallurgy sintering, forging densification, spinning forming, and precision machining. Featuring excellent structural stability and thermal load-bearing capacity, it maintains shape stability and uniform temperature distribution in large-volume, high-temperature thermal fields, making it suitable for high-end industrial scenarios requiring large-scale thermal zones and high-load operations.
Characteristics of CTIA's Large Size Tungsten Crucible
(1) High-Temperature Adaptability: The high melting point of 3422°C and low vapor pressure of tungsten enable the crucible to operate stably in vacuum or inert atmospheres at temperatures ranging from 1800°C to 2600°C.
(2) High Density and Strength: The high-density structure provides excellent thermal shock resistance and mechanical strength, ensuring long-term structural stability under large dimensions.
(3) Purity Control Capability: High-purity tungsten materials combined with a smooth surface finish effectively reduce melt contamination, guaranteeing high purity of crystals or metals.
(4) Thermal Field Uniformity: The large-capacity design combined with good thermal conductivity forms a uniform temperature field, enhancing crystal growth quality and process repeatability.
Applications of CTIA's Large Size Tungsten Crucible
(1) Sapphire Single Crystal Growth: Used in large-size crystal growth furnaces to stably support high-temperature melts and optimize thermal field distribution, thereby increasing crystal size and quality.
(2) High-Purity Metal Smelting: Used in large-scale high-temperature smelting and purification processes of materials such as tungsten, molybdenum, tantalum, niobium, and rare earth metals, improving melt purity and uniformity.
(3) Vacuum Heat Treatment: Used in large vacuum heat treatment equipment to achieve high-temperature sintering and material structure optimization.
(4) Semiconductor Material Preparation: Used for large-size crystal growth and high-temperature material synthesis processes, improving thermal field stability and consistency.
(5) High-Temperature Scientific Research: Used in large-volume high-temperature reactions and material thermal behavior research to meet complex experimental needs.
Specifications of CTIA's Large Size Tungsten Crucible
(1) Purity: W ≥ 99.95%
(2) Density: 18.0–18.5 g/cm3
(3) Diameter: 500–700 mm
(4) Height: 600–900 mm
(5) Wall Thickness: 5–30 mm
(6) Customization: CTIA provides customized structural and thermal-field solutions for large tungsten crucibles
With over 30 years of deep expertise in tungsten crucible manufacturing, CTIA GROUP consistently provides highly reliable large size tungsten crucible solutions for sapphire crystal growth, vacuum heat treatment, semiconductor manufacturing, and high-temperature smelting. Strict control is maintained throughout the entire process, from material densification control to precision machining inspection, ensuring long-term, stable performance under complex, high-temperature operating conditions.
