Tungsten Crucible Structure Types
Tungsten crucible has wide applications in high-temperature vacuum, crystal growth, and metal smelting equipment to carry melts and stabilize thermal fields. Its geometric structure directly influences temperature distribution, melt fluidity, and overall process stability. Depending on equipment architecture and operating conditions, tungsten crucible is primarily categorized into cylindrical, tapered, boat-shaped, and custom-shaped structures to meet diverse thermal field design requirements. Main structural types of tungsten crucibles include the following:

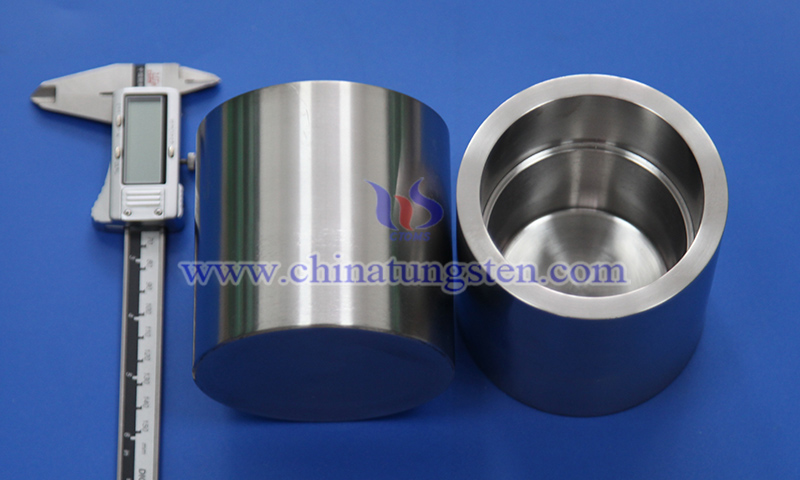

1. Cylindrical Tungsten Crucible
Cylindrical tungsten crucible is the most common standard structure with high symmetry and uniform heating, suitable for most vacuum melting and crystal growth equipment, offering easy loading and maintenance with strong versatility for industrial applications.

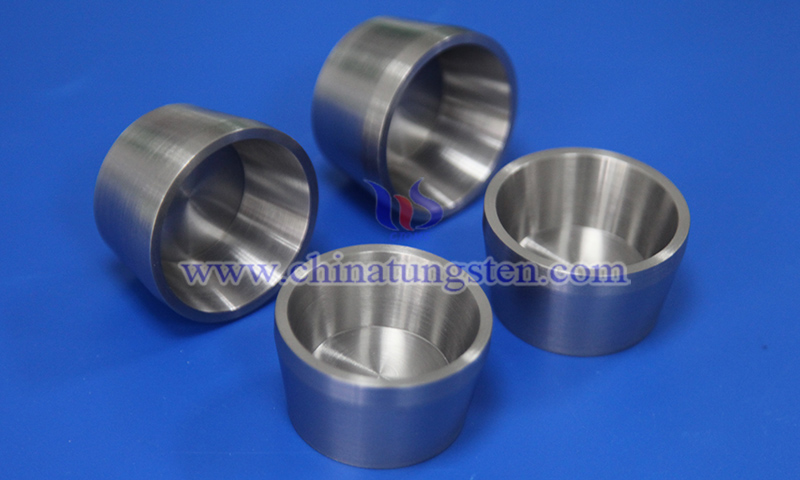

2. Tapered Tungsten Crucible
Tapered tungsten crucible features a tapered bottom design that improves melt flow paths, reduces dead zones, and optimizes temperature gradient distribution, making it suitable for crystal growth and high-end melting processes requiring precise melt control.
3. Boat-shaped Tungsten Crucible (Tungsten Boat)
Boat-shaped tungsten crucible (tungsten boat) has a shallow groove or arc structure with large surface area and thin wall thickness, enabling fast heating response and high evaporation efficiency, mainly used as a metal evaporation source in vacuum coating processes.
4. Custom-shaped Tungsten Crucible
Custom-shaped tungsten crucible is designed according to specific equipment or process requirements, including asymmetric structures, combined structures, and complex geometries, suitable for non-standard equipment and high-temperature laboratory systems.
Different types of tungsten crucibles serve different applications. Cylindrical structures are used for general melting and crystal growth, tapered structures for melt flow optimization, boat-shaped structures for vacuum evaporation coating, and custom-shaped structures for specialized equipment and customized applications.
CTIA GROUP, with over 30 years of manufacturing expertise, provides professional design and optimization of crucible geometries based on diverse thermal field architectures and process conditions, delivering high-density, thermally stable, and creep-resistant tungsten crucible solutions tailored to demanding industrial requirements.
