CTIA’s Tungsten Crucible in Ceramic Sintering & High-Temperature Material Processing

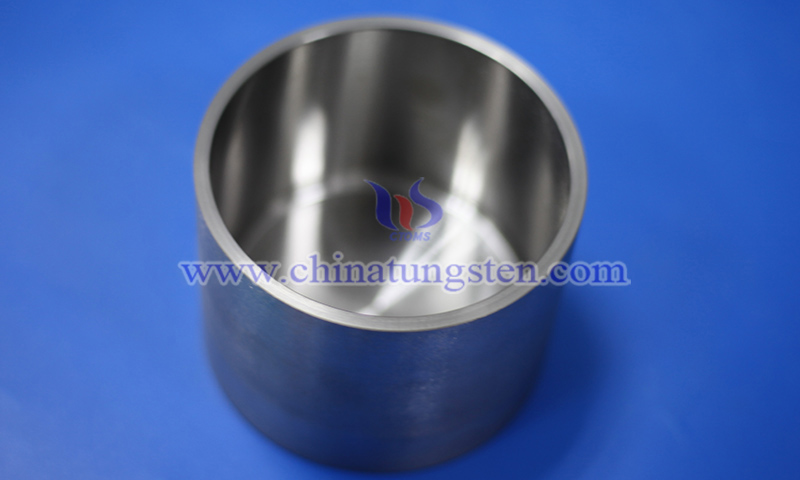

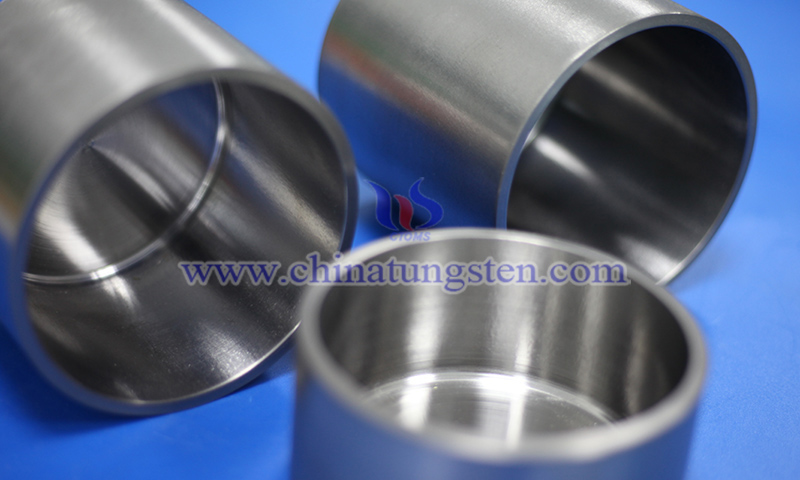

Tungsten crucible is a critical high-temperature container for ceramic sintering and high-temperature material processing, serving as a carrier for molten or powdered materials and maintaining stable thermal fields. In high-vacuum or argon-protected environments, these processes demand high material purity, thermal stability, and structural resistance to deformation.
Tungsten’s extremely high melting point and excellent high-temperature strength and creep resistance make it suitable for long-duration high-temperature operations. Its low vapor pressure reduces volatilization, minimizing the risk of external impurities entering the system and maintaining purity and stability during sintering.
1. CTIA’s Tungsten Crucible in Oxide Ceramic Sintering
During the sintering of alumina (Al?O?), zirconia (ZrO?), and composite oxide ceramics, process temperatures typically range from 1600°C to 1800°C, with some densification processes approaching 1900°C. CTIA’s tungsten crucibles provide a stable high-temperature environment, reducing contamination under high vacuum or argon protection. Tungsten’s high thermal conductivity (≈170 W/m·K) helps improve temperature uniformity within the furnace, preventing local overheating or uneven densification and ensuring consistent material properties.
2. CTIA’s Tungsten Crucible in Non-Oxide Ceramic Processing
In silicon carbide (SiC), aluminum nitride (AlN), and other non-oxide ceramic systems, fabrication temperatures typically fall within the range of 1,800°C to 2,300°C, frequently utilizing vacuum sintering or inert atmosphere reaction sintering processes. In these systems, CTIA's tungsten crucible is primarily applied for containing high-temperature reaction environments. Its low volatility characteristics reduce the risk of foreign contamination entering the material system and minimize the impact of oxygen and carbon impurities on the crystalline phase structure, thereby enhancing material density and structural uniformity. Non-oxide ceramic preparation imposes high requirements on the structural stability and thermal load resistance of the crucible.
3. How CTIA’s Tungsten Crucible Improves Thermal Cycling Stability
Ceramic sintering involves repeated heating and cooling cycles, which can induce microcracks or structural deformation, affecting consistency and material performance. CTIA’s tungsten crucibles maintain dimensional stability under thermal cycling. With a recrystallization temperature above 1200°C, tungsten preserves structural integrity at high temperatures. Different ceramic systems respond differently to thermal shocks, directly influencing sintering repeatability and microstructural uniformity.
4. How CTIA’s Tungsten Crucible Matches High-Temperature Sintering Equipment
In high-temperature sintering furnaces and material preparation equipment, the crucible structure requires collaborative design with the thermal field system, involving key parameters such as heating methods, temperature gradient distributions, and loading methods. High-temperature service life during long-cycle high-temperature loops is enhanced, and the impact of structural deformation on the stability of the sintering process is minimized through wall thickness optimization design, bottom-reinforced structures, and surface state control, thereby improving overall process consistency and material repeatability.
CTIA GROUP has been deeply engaged in manufacturing of tungsten crucible for more than 30 years, consistently serving the high-temperature ceramic sintering and advanced material preparation industries. Extensive experience has been accumulated in high-purity tungsten crucible processing and thermal field matching. Tailored to high-temperature operating conditions ranging from 1,600°C to 2,300°C, multiple process routes, including sintering and forging, can be provided, supporting various customized options such as cylindrical, thickened-bottom, and irregular structural designs.
