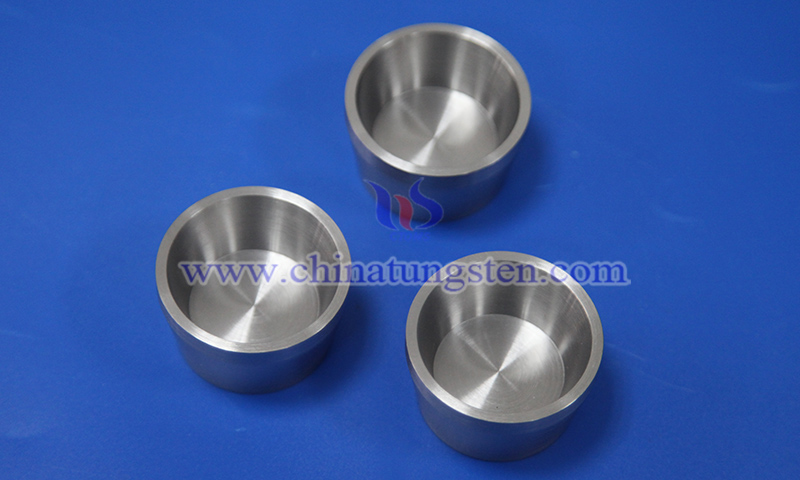

Tungsten Crucible in Nuclear Materials Testing
Tungsten crucible in nuclear materials testing refers to the ultra-high-temperature refractory vessel manufactured from high-purity tungsten material (W≥99.95%), which features high melting point (3422°C), low vapor pressure, excellent high-temperature strength, and good thermal creep resistance. Under high-temperature vacuum or inert atmosphere, tungsten crucibles maintain stable structural properties and thermal field uniformity. They are primarily utilized for melting, sintering, and thermal field research of nuclear materials, high-purity rare metals, radioactive material simulation systems, and related high-temperature experimental environments in the nuclear industry.
Why use tungsten crucibles for nuclear materials testing? Nuclear materials testing typically involves high-temperature sintering, vacuum melting, thermal stability analysis, and material phase transition research, which demand high-temperature strength, dimensional stability, and thermal cycling resistance from the vessel materials.
With over 30 years of manufacturing experience, CTIA GROUP provides high-purity tungsten crucibles produced through various processing routes including sintering, spinning, forging, and precision machining, all of which are customized to different experimental equipment and thermal field conditions to meet diverse temperature ranges and service life requirements. Strengthened by high-temperature plastic deformation, the internal grain structure of the crucible becomes denser, highly resisting deformation under long-term high-temperature cycling environments. For high-temperature vacuum furnaces, electron beam heating systems, and induction melting equipment, CTIA can further optimize the bottom thickness, wall thickness uniformity, and concentricity to enhance thermal field stability and experimental reproducibility.
Main applications of CTIA's tungsten crucibles in nuclear materials testing:
（1）Vacuum High-Temperature Sintering Furnaces：Used for sintering experiments of nuclear materials and high-purity metal powders.
（2）Electron Beam Heating Systems：Used for evaporation and thermal stability research of ultra-high-temperature materials.
（3）Induction Melting Equipment：Used for melting experiments of refractory metals and nuclear material simulation systems.
（4）Material Thermal Analysis Systems：Used for high-temperature phase transition, thermal cycling, and thermal expansion testing.
（5）Inert Atmosphere Thermal Field Experiments：Used for material interface reaction research under high-temperature environments.
Specifications of CTIA's tungsten crucibles:
（1）Purity：W ≥ 99.95%
（2）Density：17.8 ~ 18.5 g/cm3
（3）Diameter：10 ~ 700 mm
（4）Height：10 ~ 800 mm
（5）Wall Thickness：2 ~ 30 mm
（6）Structural Configurations：cylindrical, tapered, thickened bottom, lidded, and custom irregular geometries
（7）All specifications are fully customizable based on your requirements
CTIA GROUP has specialized in tungsten crucible manufacturing for over 30 years, providing customized tungsten crucible solutions according to customers' experimental furnace structures, loading capacities, heating curves, and thermal field distribution requirements, while also supporting the processing of matching tungsten lids, irregular thermal field components, and high-concentricity thin-wall structures to meet strict requirements for high-temperature stability and material purity in nuclear materials testing applications.
