What's Zirconiated Tungsten Electrode?
1.What's Zirconiated Tungsten Electrode?

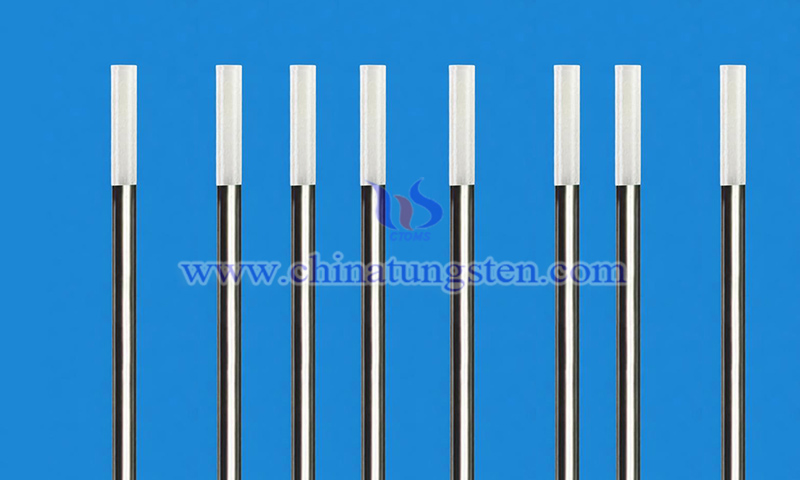

Zirconiated tungsten electrode is a non-radioactive tungsten electrode for TIG (Tungsten Inert Gas) welding, manufactured from high-purity tungsten with the addition of zirconium oxide (ZrO?). It provides a stable and efficient solution for AC (Alternating Current) welding of aluminum, aluminum alloys, magnesium, and magnesium alloys. The most common international grades are WZr3 (WZ3) and WZr8 (WZ8).
CTIA utilizes advanced powder metallurgy technology to ensure uniform distribution of zirconium oxide particles throughout the tungsten matrix. This refined microstructure enhances grain stability, significantly improving high-temperature performance and burn-off resistance.
2.Advantages of CTIA's Zirconiated Tungsten Electrode
(1) Excellent Arc Characteristics: Easy arc starting, stable arc performance, concentrated arc column, and strong contamination resistance. These properties help prevent tungsten inclusions and improve weld quality.
(2) Ideal Tip Formation: During operation, the electrode naturally forms a stable balled tip, which resists melting and erosion, extending service life.
(3) High Current-Carrying Capacity: Offers excellent current capacity under AC (Alternating Current) conditions, making it suitable for welding thick workpieces.
(4) Corrosion Resistance and Weld Cleanliness: Produces clean, aesthetically pleasing welds with minimal oxide inclusions, making it ideal for applications requiring superior weld quality.
Compared with pure tungsten electrode, zirconiated tungsten electrode provides easier arc ignition, better arc stability, and significantly improved contamination resistance and burn-off resistance during high-current AC welding. It is widely regarded as an upgraded alternative to pure tungsten electrode.
3.Applications of CTIA's Zirconiated Tungsten Electrode
(1) AC TIG welding of aluminum and magnesium alloy structures, including vehicle bodies, marine structures, and aerospace components.
(2) Precision manufacturing applications requiring high-quality, contamination-free welds.
(3) High-load welding operations using inverter-based or conventional transformer welding equipment.
4.Parameters of CTIA's Zirconiated Tungsten Electrode

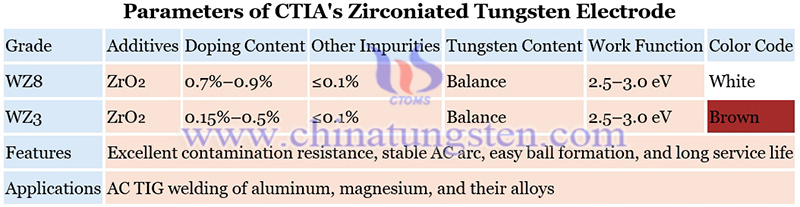

The parameters of CTIA's zirconiated tungsten electrode are shown in picture as follows:
5.How to Select CTIA's Zirconiated Tungsten Electrode
Select the electrode diameter according to welding current and workpiece thickness. Smaller diameters are suitable for precision welding of thin materials, while larger diameters are recommended for thick-section, high-current welding. For optimal performance, zirconiated tungsten electrode should be used in AC welding applications. Proper tip preparation or maintaining a stable balled tip helps maximize arc stability and welding performance.
6.Can Zirconiated Tungsten Electrode Be Used for DC Welding?
Not recommended. Similar to pure tungsten electrode, zirconiated tungsten electrode is specifically designed for AC welding applications. Under DC (Direct Current) conditions, arc ignition becomes more difficult and arc stability decreases, resulting in reduced welding performance. For DC welding, thoriated tungsten electrode, ceriated tungsten electrode, or lanthanated tungsten electrode is generally recommended.
7.Specifications of CTIA's Zirconiated Tungsten Electrode
(1) Diameter: 1.0 mm, 1.6 mm, 2.4 mm, 3.2 mm, 4.0 mm, 4.8 mm, 6.0 mm, customizable
(2) Length: 150 mm, 175 mm, customizable
(3) Surface Finish: Ground finish
(4) Packaging: 10 pcs/box, anti-oxidation and moisture-proof packaging
CTIA GROUP has specialized in tungsten electrode manufacturing for more than 30 years. Backed by integrated capabilities in tungsten powder processing, powder metallurgy, and precision machining, CTIA offers full-size WZ3 and WZ8 zirconiated tungsten electrodes, along with customized tip geometries and surface finishes, to meet the diverse demands of AC TIG welding and other industrial applications.
