Performance Comparison of Different Tungsten Electrodes
Tungsten electrode performance comparison is essential for selecting the most suitable electrode for different welding and high-temperature applications. Tungsten electrode is widely used in Tungsten Inert Gas (TIG) welding, Plasma Arc Welding (PAW), electron beam welding, and vacuum electronic devices. Different tungsten electrode types exhibit significant differences in electron emission capability, arc stability, current-carrying capacity, burn resistance, and application suitability. Understanding these performance characteristics helps users choose the optimal tungsten electrode based on welding material and operating conditions.
1. Main Factors Affecting the Performance of CTIA’s Tungsten Electrode
The performance differences among CTIA’s tungsten electrodes mainly result from the following factors:
(1) Material Composition: Whether rare-earth oxides such as lanthanum oxide (La?O?), cerium oxide (CeO?), zirconium oxide (ZrO?), thorium oxide (ThO?), or yttrium oxide (Y?O?) are added.
(2) Work Function: Reduced from approximately 4.5 eV for pure tungsten to 2.0-3.2 eV depending on the electrode type.
(3) Thermal Stability: Differences in recrystallization temperature and grain stability at elevated temperatures.
These factors collectively determine arc-starting performance, arc concentration, and service life.
2. Performance Analysis of Different CTIA’s Tungsten Electrodes
(1) Arc-Starting Performance Comparison of CTIA’s Tungsten Electrodes
Ceriated tungsten electrode (WC20) and lanthanated tungsten electrode (WL20) provide the best arc-starting performance due to their low work function and are well suited for low-current and automated welding. Pure tungsten electrode (WP) has relatively weaker arc-starting performance and generally requires a higher starting voltage. Zirconiated tungsten electrode (WZ8) provides stable arc starting in Alternating Current (AC) welding.
(2) Arc Stability Comparison of CTIA’s Tungsten Electrodes
Lanthanated tungsten electrode and ceriated tungsten electrode offer excellent arc stability in Direct Current (DC) welding. Yttriated tungsten electrode (WY20) provides the highest arc concentration under high-current conditions and is suitable for heavy-duty welding. Pure tungsten electrode performs well in AC welding but offers lower stability in DC applications.
(3) Current-Carrying Capacity Comparison of CTIA’s Tungsten Electrodes
Yttriated tungsten electrode and thoriated tungsten electrode (WT20) provide high current-carrying capacity and are suitable for thick-section welding and continuous operation. Lanthanated tungsten electrode and ceriated tungsten electrode are widely used in medium- to high-current welding applications. Pure tungsten electrode is primarily suitable for low- to medium-current AC welding.
(4) Service Life Comparison of CTIA’s Tungsten Electrodes
Under identical current conditions, rare-earth tungsten electrodes generally provide longer service life than pure tungsten electrode. Lanthanated tungsten electrode and yttriated tungsten electrode demonstrate superior burn resistance in automated welding applications. Thoriated tungsten electrode offers a long service life, but its application scope is gradually narrowing due to environmental protection restriction.
(5) Application Comparison of CTIA’s Tungsten Electrodes
Pure tungsten electrode is suitable for AC welding of aluminum and magnesium alloys. Ceriated tungsten electrode is suitable for thin-sheet and precision welding. Lanthanated tungsten electrode is suitable for carbon steel, stainless steel, and automated welding. Zirconiated tungsten electrode is suitable for high-current AC welding of aluminum alloys. Yttriated tungsten electrode is suitable for aerospace and advanced manufacturing applications.
3. Comprehensive Performance Comparison of CTIA’s Tungsten Electrodes

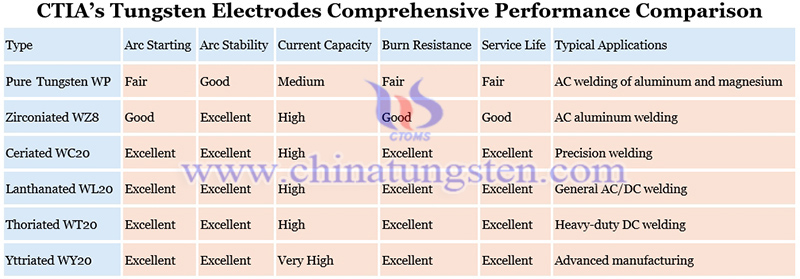

Comprehensive performance comparison of CTIA’s tungsten electrodes is shown in the picture below:
With the development of automated welding and precision manufacturing, lanthanated tungsten electrode and ceriated tungsten electrode have become mainstream choices. Pure tungsten electrode remains widely used in conventional AC welding applications, while yttriated tungsten electrode is gaining popularity in high-load and high-reliability environments. Composite tungsten electrode, combining the advantages of multiple rare-earth oxides, represents an important direction for future high-performance welding applications.
With over 30 years of tungsten electrode manufacturing experience, CTIA GROUP (CTIA) has established complete powder metallurgy and precision machining capabilities and supplies pure tungsten electrode as well as a full range of rare-earth tungsten electrodes. Based on welding current, base material, and automation requirements, CTIA provides customized solutions to achieve more stable arc performance and longer service life.
