Tungsten Electrode in PAW
PAW tungsten electrode is a non-consumable electrode used in Plasma Arc Welding (PAW), continuously emitting electrons to maintain a stable welding arc. With a melting point as high as 3422°C, tungsten can withstand the high-temperature plasma arc environment over long periods, making it one of the most essential core materials in the PAW welding.
Compared with traditional Tungsten Inert Gas (TIG) welding, PAW provides a more constricted arc, higher energy density, and deeper penetration. As a result, PAW places higher requirements on the electron emission capability, dimensional accuracy, and burn resistance of tungsten electrode.
1. Working Principle of Tungsten Electrodes in PAW
Under Direct Current (DC) power, tungsten electrode functions as the cathode and emits electrons. The electron flow interacts with plasma gas passing through a constricting nozzle, ionizing the gas and generating a high-temperature, high-energy-density plasma arc. Arc temperatures can reach 10,000-30,000°C, enabling stable and efficient welding.
2. Types of CTIA’s PAW Tungsten Electrode

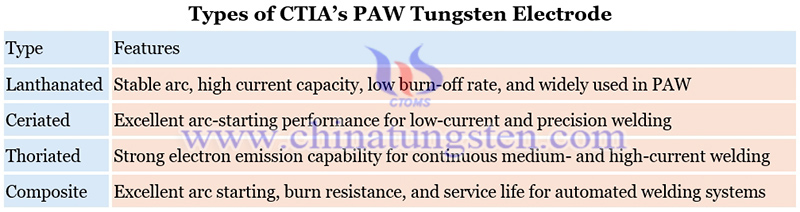

Types and Features of CTIA’s PAW Tungsten Electrode are shown in the picture below:
3. Applications of CTIA’s Tungsten Electrode in PAW
CTIA’s tungsten electrode is suitable for precision welding of material such as stainless steel, titanium alloy, and nickel-based superalloy, widely applied in fields including aerospace, nuclear power equipment, pressure vessel, medical device, precision instrument, and automated welding production line.
4. Specifications of CTIA’s PAW Tungsten Electrode
(1) Diameter: 1.0 mm, 1.6 mm, 2.0 mm, 2.4 mm, 3.0 mm, 3.2 mm, customizable
(2) Length: 150 mm, 175 mm, customizable
Backed by over 30 years of industrial expertise, CTIA GROUP provides full production capabilities from raw tungsten powder processing and forming to sintering and grinding. CTIA reliably offers pure tungsten, lanthanated tungsten electrode, ceriated tungsten electrode, thoriated tungsten electrode, zirconiated tungsten electrode, and composite rare earth tungsten electrode. All options can be customized by diameter and length to match client requirements across automated, precision, and heavy-duty industrial welding fields.
For any inquiry, please contact?tungsten electrode manufacturer: CTIA GROUP
Email: sales@chinatungsten.com
Tel: 0086 592 5129696 / 0086 592 5129595
