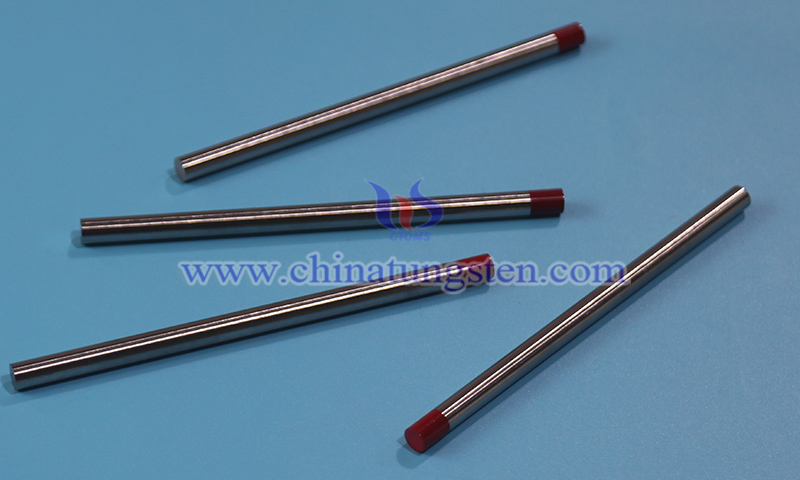

Tungsten Electrode in Gas Tungsten Arc Welding (GTAW)
Tungsten electrode serves as the primary non-consumable component in Gas Tungsten Arc Welding (GTAW), sustaining a highly stable arc plasma channel under inert gas shielding to deliver a precisely concentrated thermal source required for high-integrity weld formation.
1. How Does Tungsten Electrode Work in Gas Tungsten Arc Welding?
Tungsten electrode generates a stable arc under Direct Current (DC) or Alternating Current (AC) power. Acting as a cathode or alternating-polarity carrier, tungsten electrode emits electrons through thermionic emission to sustain the arc plasma channel. Arc temperature can reach 6000-10000°C, concentrating heat in the arc core and locally melting the base material to form a weld.
2. What Types of GTAW Tungsten Electrode Are Available and What Are Their Characteristics?
(1) Pure Tungsten Electrode
Suitable for AC aluminum and magnesium welding, its tip easily forms a balled structure, demonstrating medium arc stability.
(2) Ceriated Tungsten Electrode
Suitable for precision welding and thin sheet welding with excellent low-current arc ignition performance.
(3) Lanthanated Tungsten Electrode
Combines AC/DC adaptability with balanced arc ignition and arc stability, commonly used in automated welding.
(4) Zirconiated Tungsten Electrode
Suitable for AC high-current aluminum welding, featuring strong contamination resistance.
(5) Thoriated Tungsten Electrode
Features strong electron emission capability, suitable for DC high-load welding, but its application scope is gradually narrowing due to environmental protection restriction.
(6) Yttriated Tungsten Electrode
Possesses high current-carrying capacity and excellent arc constriction, suitable for aerospace and high-end manufacturing.
3. What Are Applications of CTIA’s GTAW Tungsten Electrode?
(1) Aerospace Structural Welding: Precision joining of titanium alloys, superalloys, and thin-wall structures.
(2) Automotive and New Energy Industries: Welding of aluminum alloy bodies, battery housings, and conductive structures.
(3) Pressure Vessels and Piping Systems: High-integrity welding of stainless steel and carbon steel components.
(4) Electronics and Semiconductor Packaging: Welding applications involving microstructures and high-cleanliness environments.
(5) Rail Transit and Heavy Industrial Equipment: Continuous welding of thick-section structures under high-load conditions.
4. How to Select CTIA’s Tungsten Electrode for Gas Tungsten Arc Welding?
Selection of GTAW tungsten electrode requires comprehensive consideration of welding current range, base metal type, and automation level. Ceriated tungsten electrode is preferred for low-current precision welding, while lanthanated tungsten electrode is favored for medium-to-high current general-purpose welding. Pure tungsten electrode or zirconiated tungsten electrode is optimal for AC aluminum welding, whereas yttriated tungsten electrode can be selected for high-load and high-reliability scenario.
5. Specifications of CTIA’s Tungsten Electrode in GTAW Welding
(1) Diameter: 1.0 mm, 1.6 mm, 2.4 mm, 3.2 mm, 4.0 mm, 4.8 mm, 6.0 mm, customizable
(2) Length: 150 mm, 175 mm, customizable
With over 30 years of tungsten electrode manufacturing experience, CTIA GROUP has established a complete production system covering high-purity tungsten powder preparation, cold isostatic pressing, vacuum sintering, and precision grinding. CTIA supplies pure tungsten, ceriated, lanthanated, zirconiated, and yttriated tungsten electrodes. Customized processing services are available for diameter, length, tip geometry, and surface finish to meet the requirements of different TIG welding equipment and welding processes.
