Pure Tungsten Electrode vs. Other Common Tungsten Electrodes
Pure tungsten electrode (WP) was once the standard electrode for Tungsten Inert Gas (TIG) welding. With the development of rare-earth tungsten electrodes such as lanthanated tungsten electrode, ceriated tungsten electrode, zirconiated tungsten electrode, and yttriated tungsten electrode, pure tungsten electrode is no longer suitable for every welding application. Significant differences exist in electron emission capability, arc stability, current-carrying capacity, and service life. Understanding these differences helps users select the most suitable welding solution.
1. What Are the Differences Between Pure Tungsten Electrode and Lanthanated Tungsten Electrode?
Lanthanated tungsten electrode is produced by adding 0.8%-2.2% lanthanum oxide (La?O?) to a high-purity tungsten matrix. Compared with pure tungsten electrode, lanthanated tungsten electrode has a lower work function and higher electron emission efficiency, resulting in easier arc starting and greater arc stability. Under the same diameter and current conditions, burn-off rates are generally lower and service life is longer. Today, 2% lanthanated tungsten electrode (WL20) has become one of the most widely used electrodes in automated welding, robotic welding, and high-end TIG welding equipment. CTIA’s tungsten electrode selection recommendations: (1) AC welding of aluminum alloys, pure tungsten electrode or lanthanated tungsten electrode; (2) DC welding of stainless steel and carbon steel, lanthanated tungsten electrode preferred; (3) Automated welding, lanthanated tungsten electrode preferred.
2. Which Is Better: Pure Tungsten Electrode or Ceriated Tungsten Electrode?
Ceriated tungsten electrode (WC20) contains approximately 2% cerium oxide (CeO?). Its greatest advantage is excellent arc-starting performance at low current. In thin-sheet welding, precision welding, and low-current welding applications, ceriated tungsten electrode typically establishes a stable arc more easily than pure tungsten electrode. For welding electronic components, precision instruments, and thin-wall tubing, ceriated tungsten electrode has become a mainstream choice. CTIA’s tungsten electrode selection recommendations: (1) Low-current welding of 5-100 A, ceriated tungsten electrode preferred; (2) Precision welding, ceriated tungsten electrode preferred; (3) Conventional AC aluminum welding, pure tungsten electrode remains suitable.
3. How to Choose Between Pure Tungsten Electrode and Zirconiated Tungsten Electrode?
Zirconiated tungsten electrode (WZ8) contains approximately 0.8% zirconium oxide (ZrO?). Its most notable advantage is resistance to tip splitting during AC welding while maintaining a stable balled tip. In AC welding of aluminum and magnesium alloys, zirconiated tungsten electrode is often considered an upgraded alternative to pure tungsten electrode. CTIA’s tungsten electrode selection recommendations: (1) General AC welding, pure tungsten electrode; (2) High-current AC welding, zirconiated tungsten electrode preferred; (3) Aluminum alloy welding, zirconiated tungsten electrode preferred.
4. What Are the Differences Between Pure Tungsten Electrode and Thoriated Tungsten Electrode?
Thoriated tungsten electrode (WT20) contains approximately 2% thorium oxide (ThO?). Its electron emission capability is superior to pure tungsten electrode, making it a long-standing choice for DC welding applications. However, because thorium is naturally radioactive, many users now replace thoriated tungsten electrode with lanthanated tungsten electrode or ceriated tungsten electrode. CTIA’s tungsten electrode selection recommendations: (1) Conventional DC welding, thoriated tungsten electrode remains suitable; (2) Environmentally sensitive applications, lanthanated tungsten electrode or ceriated tungsten electrode recommended.
5. Comprehensive Performance Comparison of CTIA’s Pure Tungsten Electrode and Other Tungsten Electrodes

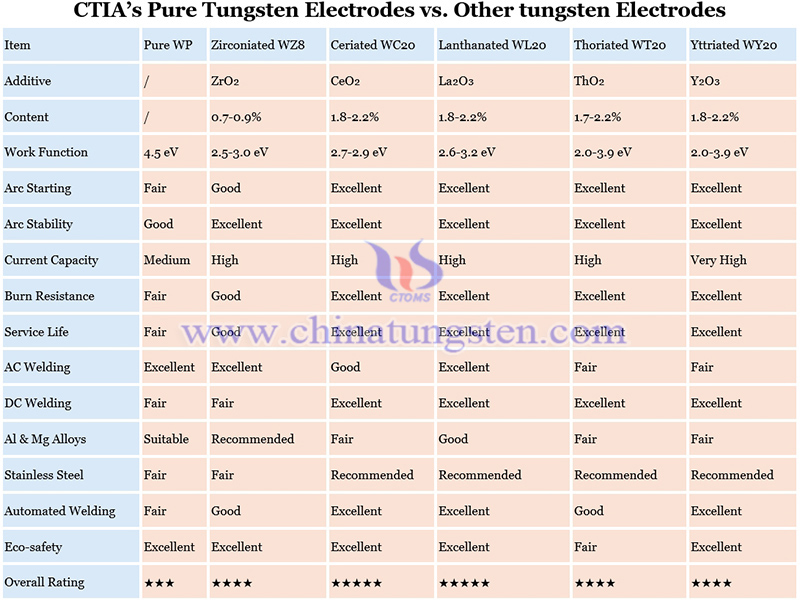

The comprehensive performance comparison of CTIA’s pure tungsten electrode and other tungsten electrodes is shown in the picture below:
For most modern TIG welding applications, 2% lanthanated tungsten electrode and 2% ceriated tungsten electrode have become the most popular choices. For AC welding of aluminum alloys, zirconiated tungsten electrode offers significant advantages, while pure tungsten electrode remains widely used in conventional AC welding and certain specialized applications.
With over 30 years of tungsten electrode manufacturing experience, CTIA GROUP (CTIA) supplies a complete range of products, including pure tungsten electrode, lanthanated tungsten electrode, ceriated tungsten electrode, zirconiated tungsten electrode, thoriated tungsten electrode, and yttriated tungsten electrode. CTIA provides professional electrode selection and customized solutions based on welding material, current range, automation level, and equipment requirements.
